ghetto way to bump fuel pressure

Before you try to copy this, you should have a good reason, and do so AT YOUR OWN RISK. If you fvck it up Im not responsible I all most ruined mine so be very careful!!!

So now that thats out of the way, my reason for deciding that I need more fuel pressure is because Im building a bigger motor with bigger cams ect ect. in order to keep duty cycle down you need either more fuel pressure or larger injectors. Last I checked injectors werent free, but this is.

What I did was crush the FPR (fuel pressure regulator) in a vice. this is just like shimming the spring internally making the FPR open at a higher pressure. my most accurate pressure gauge in the range required was on my air pig. I put a few fittings, and an on off valve together and connected that to the fuel rail on the pressure side then turned it on. sure enough air stopped flowing out the FPR at just over 40 psi(stock is supposed to be 41). now the tricky part. take the fpr off and find a way to crush it without damaging it. i cut a piece of pipe to fit, and used a socket to do the crushing part



my goal, 60 psi. but if i go over, up to about 70 is fine from what I have been told/read. (Wolf Racing from Australia and Bear Racing from S Africa).

the first crush showed 48 psi when i put it all back together. this was good, but not as high as I wanted

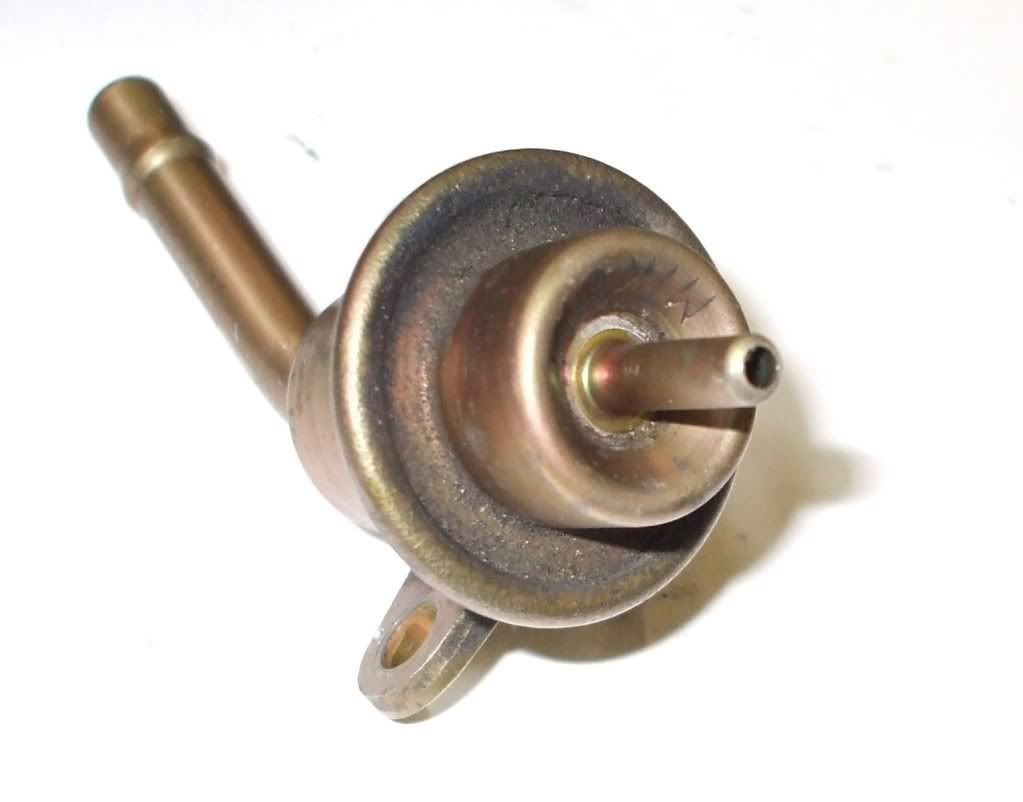

the second crush looked like this, and THIS IS TOO FAR.

125psi and it wouldnt open. this is why you must be very careful!

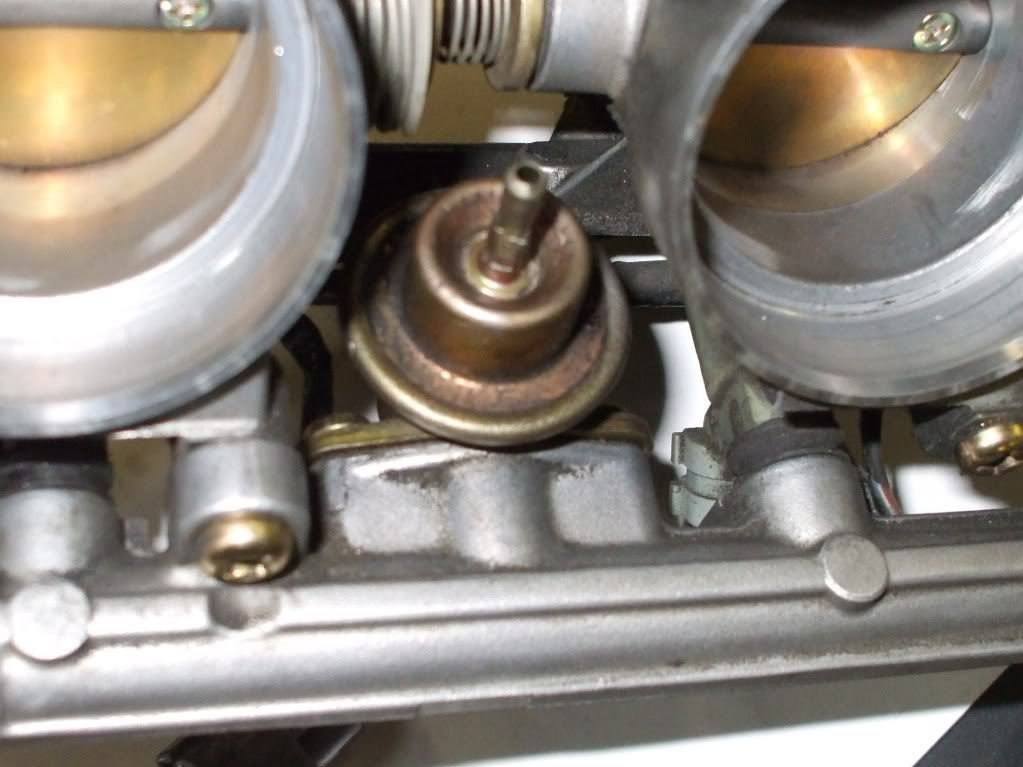

I got really lucky and was able to pull it back out a tiny bit with a set of small vise grips. its not pretty, but it will work, and now I have 64psi



this should make the stock 330cc injectors flow like a set of 412cc injectors at normal pressure.

01 ZX-12R 8.84 @ 156.3 on dot tires, NA.... turbo 8.47 @ 164
00 ZX-12R 8.62 @ 165.2 no bars, slicks, 55 shot... turbo 8.32 @ 173
00 ZX-12R 1: 222.046 1.5: 226.390 Worlds Fastest NA Kawasaki
00 ZX-12R street turbo 1: 227.9 1.5: 234.1
00 ZX-12R LSR turbo 1: 249.5 1.5: 266.5 Worlds fastest ZX-12R CMG Racing RCC Turbos
KZScott is offline
Sponsored Links
Advertisement

post #2 of 14 Old 05-30-2010, 07:55 PM
Senior Member

1990sss10's Avatar

Join Date: Dec 2009
Location: Utah
Posts: 1,414
I did this on my old hyundai. It was still slow but it would burn tires on the 1st to second shift after i did it. This a creative (and old-school) trick that usually works great.

2000 zx12 turbo, goofy redneck perched on top
1990sss10 is offline
post #3 of 14 Old 01-17-2011, 01:17 PM
Senior Member

holeshot's Avatar

Join Date: Feb 2010
Location: Gainesville.......
Posts: 1,565
B&M makes a kit #46057 you can use...You cut off 1/4" of the top of the reg. then you use this kit that goes over the top of your stock one and converts it to an adjustable regulator....Looks like it would work....I used it on my Integra FPR for Nitrous use....
B&M CommandFlo #46057 FPR....$56.

Last edited by holeshot; 01-17-2011 at 01:20 PM.
holeshot is offline
post #4 of 14 Old 01-17-2011, 01:27 PM
drp
Senior Member

drp's Avatar

Join Date: Jul 2005
Location: Bristol, England
Posts: 1,872
Garage
.


KZScott,


Fair play to you, 'what needs must'



.
drp is offline
post #5 of 14 Old 01-17-2011, 02:51 PM
Senior Member

void4114's Avatar

Join Date: Oct 2010
Location: Connecticut
Posts: 621
surprised you dont have a remote fpr and an fittings
void4114 is offline
post #6 of 14 Old 01-17-2011, 03:22 PM
Senior Member

Hibs's Avatar

Join Date: Jan 2006
Location: Colorado Springs, CO
Posts: 3,205
haha love it. nice trick Scott, and thanks for sharing
Hibs is offline
post #7 of 14 Old 01-17-2011, 06:11 PM
Senior Member

holeshot's Avatar

Join Date: Feb 2010
Location: Gainesville.......
Posts: 1,565
You are right Scott,Ghetto as fuck.....lol...But I guess it works for you huh....Good luck with it....
holeshot is offline
post #8 of 14 Old 01-17-2011, 07:46 PM
Senior Member

tlvines86's Avatar

Join Date: May 2010
Location: Topeka,KS
Posts: 449
Quote:
Originally Posted by holeshot View Post
B&M makes a kit #46057 you can use...You cut off 1/4" of the top of the reg. then you use this kit that goes over the top of your stock one and converts it to an adjustable regulator....Looks like it would work....I used it on my Integra FPR for Nitrous use....
B&M CommandFlo #46057 FPR....$56.
Do you got a website????

Also do you have to pull the motor to get to the regulator or can it be obtined with the motor still on the bike?
tlvines86 is offline
post #9 of 14 Old 01-18-2011, 06:14 AM
Senior Member

holeshot's Avatar

Join Date: Feb 2010
Location: Gainesville.......
Posts: 1,565
Quote:
Originally Posted by tlvines86 View Post
Do you got a website????

Also do you have to pull the motor to get to the regulator or can it be obtined with the motor still on the bike?
I just googled it. B&M Commandoflo #46057...But I got mine at Discount Auto.....Very popular item and takes about 20 min`s to install.....
holeshot is offline
post #10 of 14 Old 01-18-2011, 10:13 AM
Senior Member

tlvines86's Avatar

Join Date: May 2010
Location: Topeka,KS
Posts: 449
Quote:
Originally Posted by holeshot View Post
I just googled it. B&M Commandoflo #46057...But I got mine at Discount Auto.....Very popular item and takes about 20 min`s to install.....
Cool Thanks
tlvines86 is offline
post #11 of 14 Old 01-18-2011, 11:12 AM
Senior Member

edge2edge's Avatar

Join Date: Oct 2002
Location: na
Posts: 1,938
Hey Scott are you logging how the changes affect performance? I am curious...

http://mckenzie68.wordpress.com/
"The only thing necessary for the triumph of evil is for good men to do nothing"

Edmund Burke
edge2edge is offline
post #12 of 14 Old 01-21-2011, 11:26 AM
Senior Member

shultz's Avatar

Join Date: Apr 2008
Location: berks county pa
Posts: 453
I did the same thing to my fpr but only up it to 48psi mine was 40psi stock.
I had to take 30%to40% out of my map in the low end a mid rage. The only reason i upped my fuel pressure was because of nitrous and some head work.
shultz is offline
post #13 of 14 Old 01-21-2011, 01:18 PM Thread Starter
Senior Member

KZScott's Avatar

Join Date: Jan 2007
Location: Ontario, Canada
Posts: 5,782
Send a message via MSN to KZScott
Quote:
Originally Posted by edge2edge View Post
Hey Scott are you logging how the changes affect performance? I am curious...
I did a lot of mods at the same time, head, cams , crank. and the logger wasnt really working well last season. i initially took out a lot of fuel down low and needed to add up top.

01 ZX-12R 8.84 @ 156.3 on dot tires, NA.... turbo 8.47 @ 164
00 ZX-12R 8.62 @ 165.2 no bars, slicks, 55 shot... turbo 8.32 @ 173
00 ZX-12R 1: 222.046 1.5: 226.390 Worlds Fastest NA Kawasaki
00 ZX-12R street turbo 1: 227.9 1.5: 234.1
00 ZX-12R LSR turbo 1: 249.5 1.5: 266.5 Worlds fastest ZX-12R CMG Racing RCC Turbos
KZScott is offline
post #14 of 14 Old 01-22-2011, 08:51 AM
Senior Member

edge2edge's Avatar

Join Date: Oct 2002
Location: na
Posts: 1,938
Thanks Scott!

http://mckenzie68.wordpress.com/
"The only thing necessary for the triumph of evil is for good men to do nothing"

Edmund Burke
edge2edge is offline
