factory clutch setup, manual, oem, diagrams, pics, beginners read this ;)

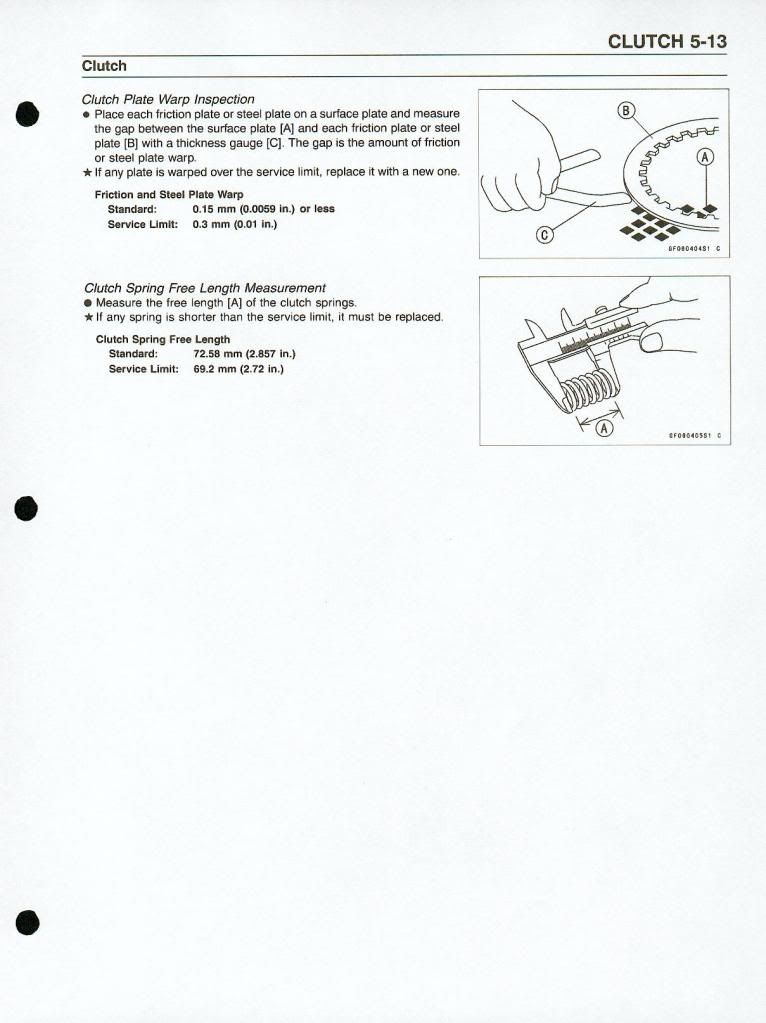

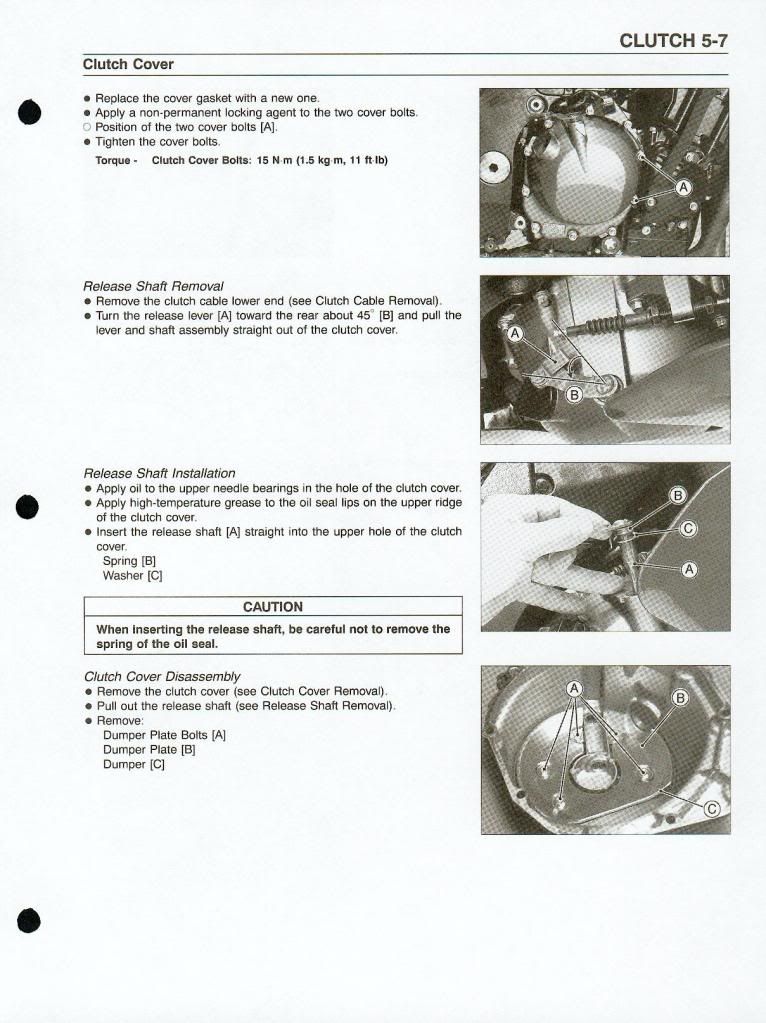

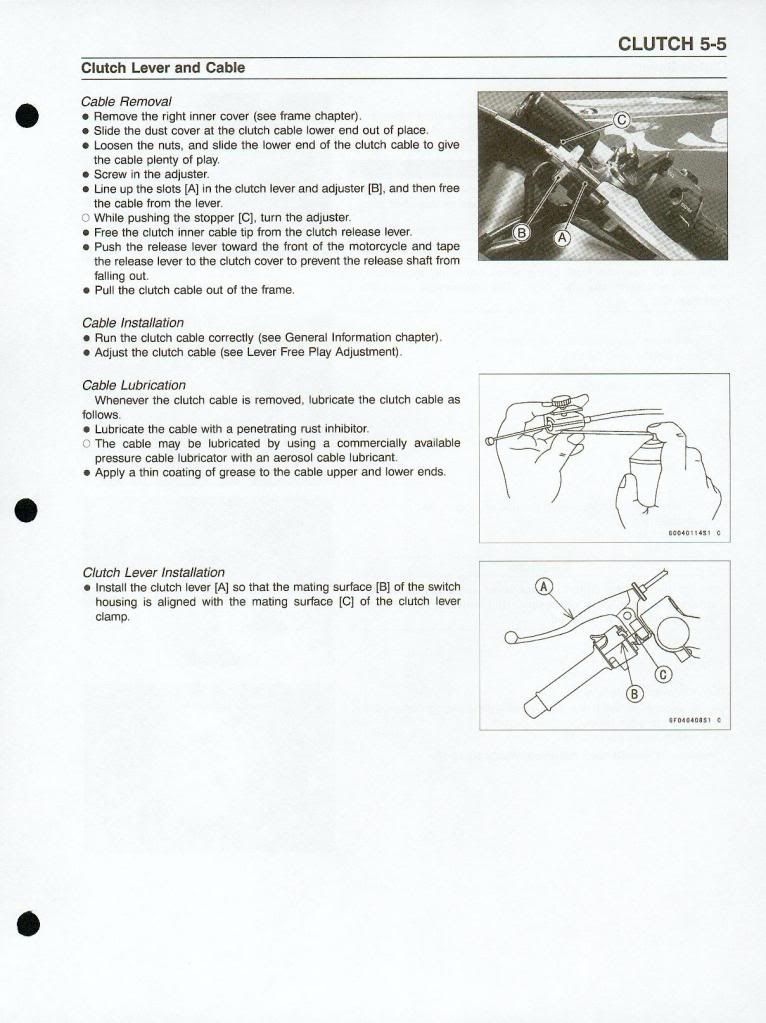

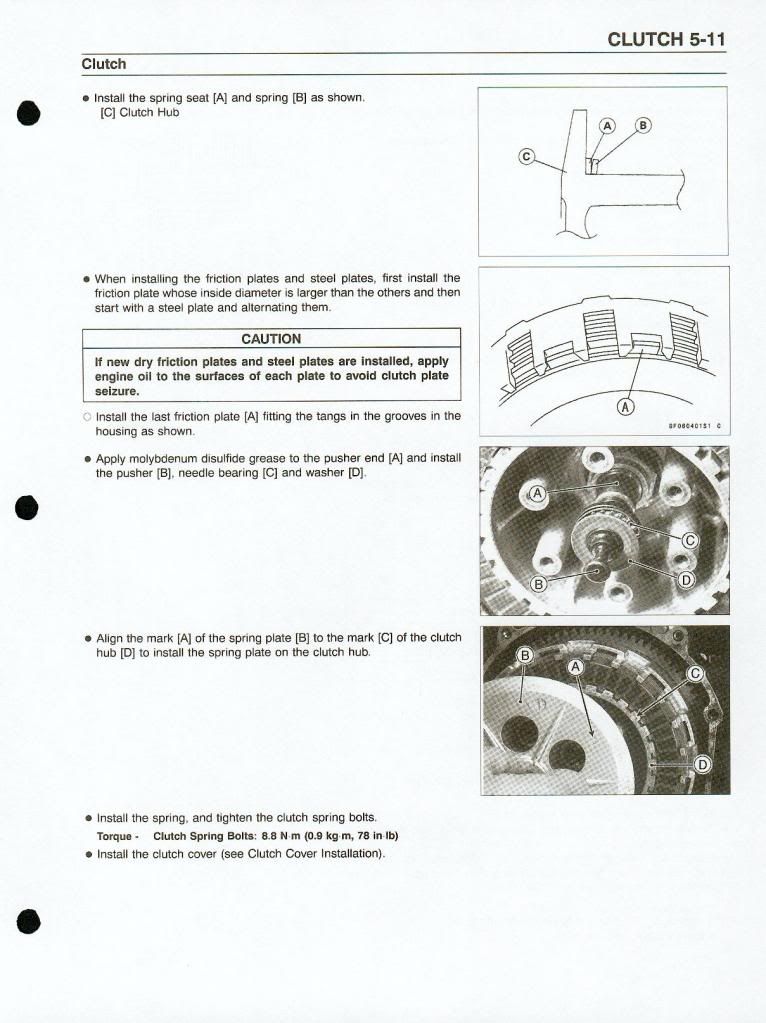

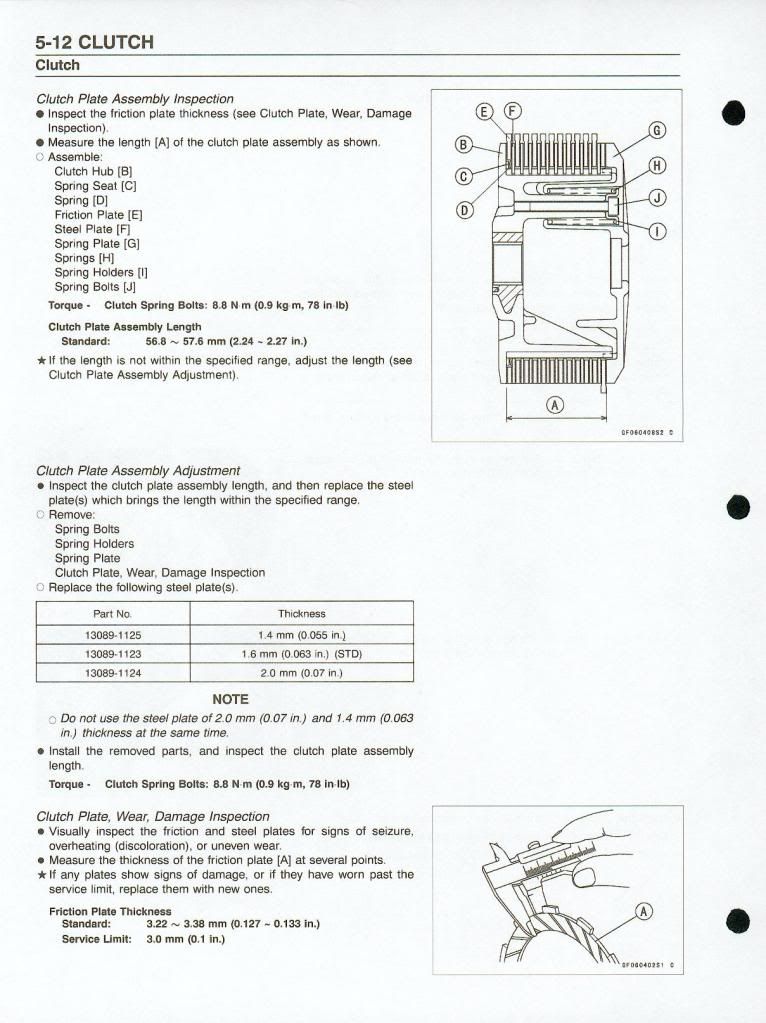

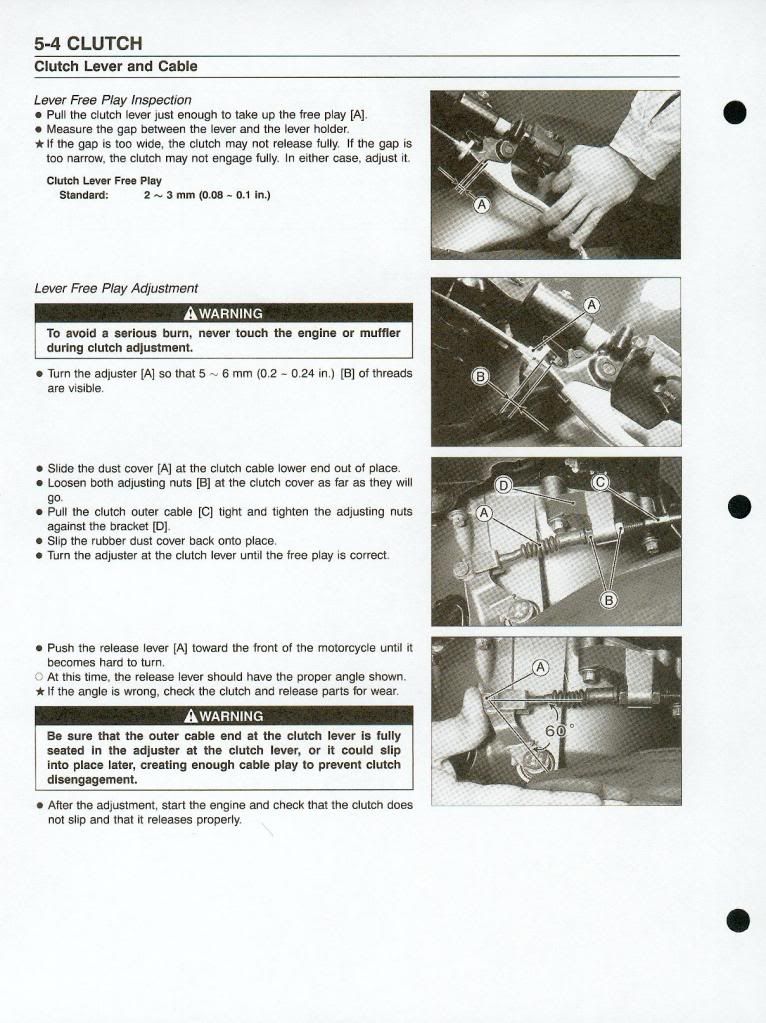

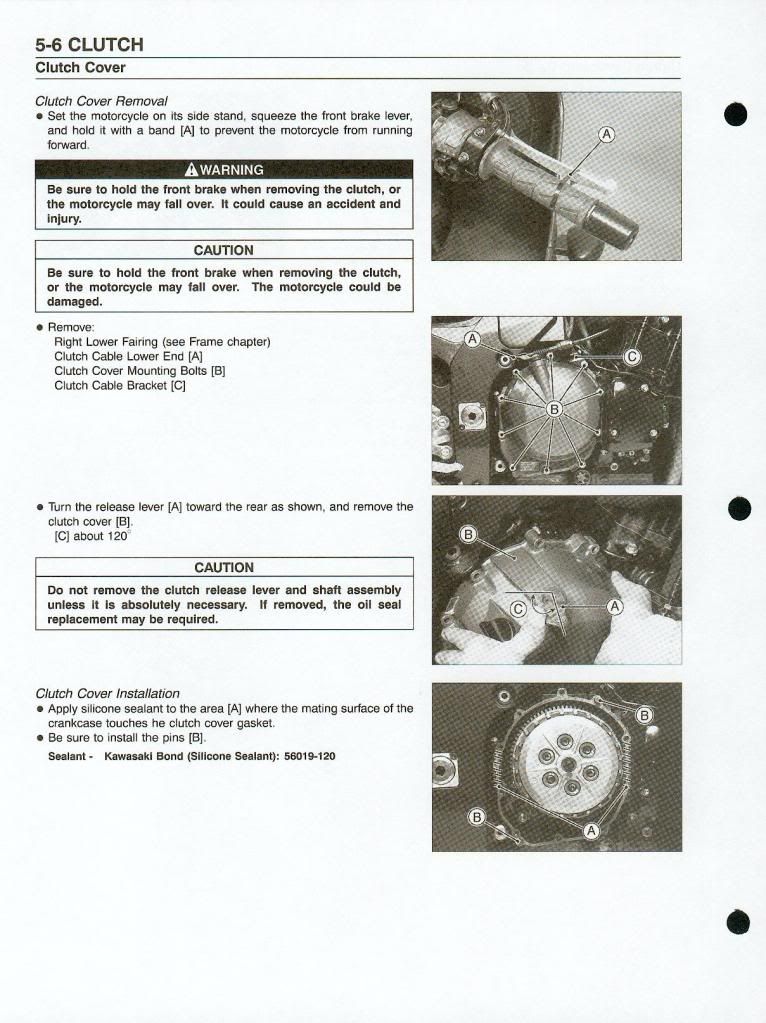

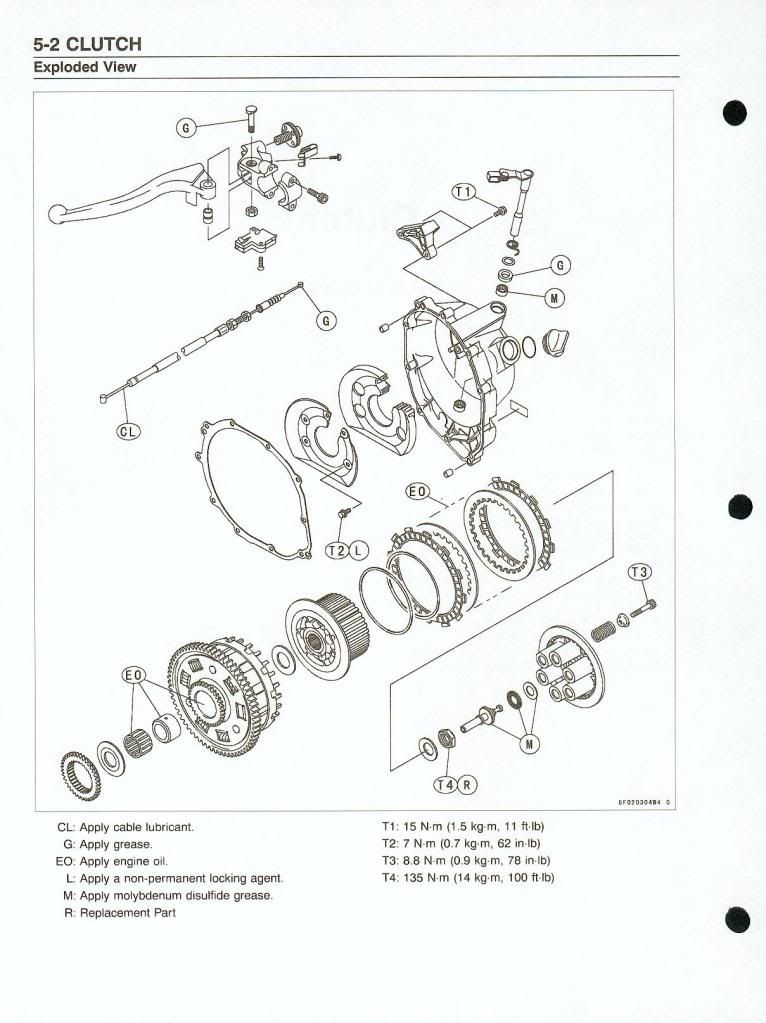

seems to be a lot of questions regarding the oem setup lately so here ya go, section 5 of the factory service manual


























01 ZX-12R 8.84 @ 156.3 on dot tires, NA.... turbo 8.47 @ 164
00 ZX-12R 8.62 @ 165.2 no bars, slicks, 55 shot... turbo 8.32 @ 173
00 ZX-12R 1: 222.046 1.5: 226.390 Worlds Fastest NA Kawasaki
00 ZX-12R street turbo 1: 227.9 1.5: 234.1
00 ZX-12R LSR turbo 1: 249.5 1.5: 266.5 Worlds fastest ZX-12R CMG Racing RCC Turbos
KZScott is offline
Sponsored Links
Advertisement

post #2 of 9 Old 03-30-2010, 04:27 PM
Moderator

Connman's Avatar

Join Date: Apr 2004
Location: Denver, CO
Posts: 4,135
Nice contribution KZ!

Any twelve people who can't get themselves out of jury duty are not my peers.
Connman is offline
post #3 of 9 Old 03-30-2010, 05:59 PM
Senior Member

Join Date: Aug 2007
Location: down the street
Posts: 1,144
if you are retarded like me, clean up a nice spot on the pressure plate with some degreaser, then grab a permanent marker and write down the proper stack height. no more running back to the computer to double check!!!

2002 ZX-12R Blue w/ Ghost Flames (thats 5 extra hp!)
"Do a wheelie!" -moron
almost_les is offline
post #4 of 9 Old 03-30-2010, 06:04 PM
Senior Member

Join Date: Aug 2007
Location: down the street
Posts: 1,144
this thread should seriously be a sticky

2002 ZX-12R Blue w/ Ghost Flames (thats 5 extra hp!)
"Do a wheelie!" -moron
almost_les is offline
post #5 of 9 Old 03-30-2010, 08:11 PM Thread Starter
Senior Member

KZScott's Avatar

Join Date: Jan 2007
Location: Ontario, Canada
Posts: 5,782
Send a message via MSN to KZScott
good idea with marking the pressure plate.
I put this in the racing area because this section is kinda dead, it will be on page 1 for a long time, plus the title should turn up when someone is searching for clutch info

01 ZX-12R 8.84 @ 156.3 on dot tires, NA.... turbo 8.47 @ 164
00 ZX-12R 8.62 @ 165.2 no bars, slicks, 55 shot... turbo 8.32 @ 173
00 ZX-12R 1: 222.046 1.5: 226.390 Worlds Fastest NA Kawasaki
00 ZX-12R street turbo 1: 227.9 1.5: 234.1
00 ZX-12R LSR turbo 1: 249.5 1.5: 266.5 Worlds fastest ZX-12R CMG Racing RCC Turbos
KZScott is offline
post #6 of 9 Old 03-30-2010, 08:54 PM
Senior Member

GO 200's Avatar

Join Date: Sep 2002
Location: Cadiz, KY USA
Posts: 25,285
Quote:
Originally Posted by almost_les View Post
this thread should seriously be a sticky
Good idea... There's a lot more threads that need to be collected into a "Tech Section"... I'm talking to the home office about getting that set-up...

Till then, I'll make this a sticky!!

I can explain it to you, but I can't understand it for you.
GO 200 is offline
post #7 of 9 Old 06-01-2011, 10:19 AM
Senior Member

JPMuscle's Avatar

Join Date: Sep 2010
Location: J town
Posts: 991

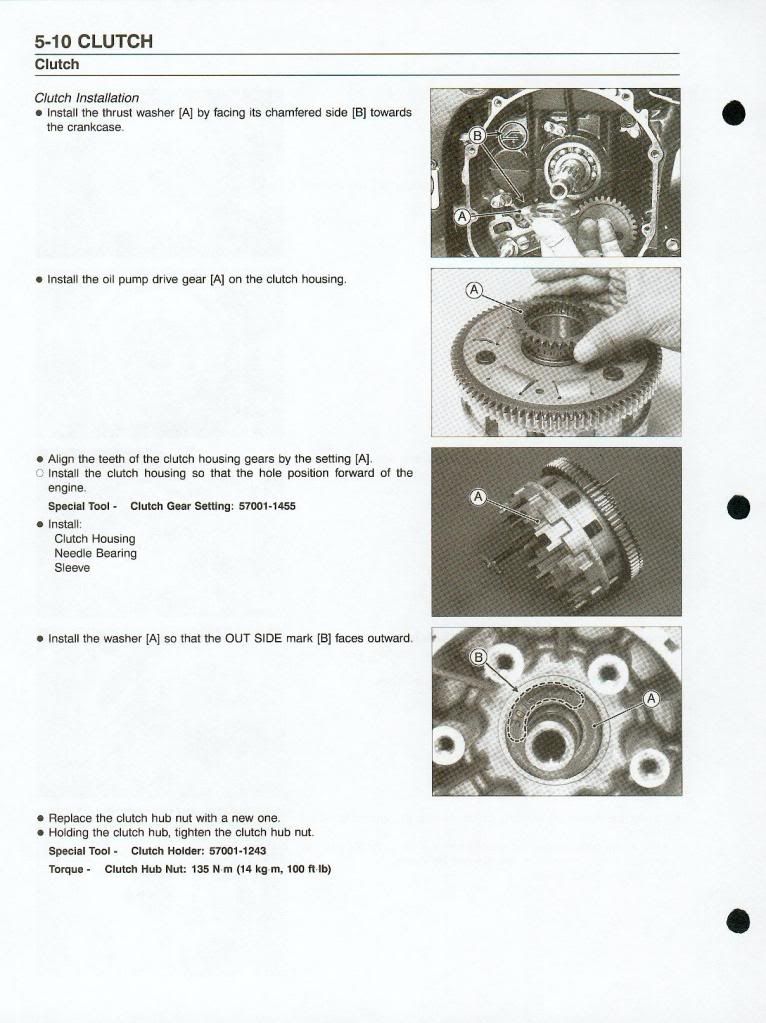

Ok I figured out how to make the Clutch hub removal tool out of old steels but what are you guys using for the Clutch gear setting tool? shown on page 5-10? or where can I buy one?

03 ZX12r - Cosmic Red ( Dont be fooled, shes purple)
Sold.......
JPMuscle is online now
post #8 of 9 Old 06-01-2011, 01:33 PM
Senior Member

Join Date: Aug 2007
Location: down the street
Posts: 1,144
i've never used one. just some wiggling to get it out, then put in the needle bearing/cage with the basket, and the collar last.

2002 ZX-12R Blue w/ Ghost Flames (thats 5 extra hp!)
"Do a wheelie!" -moron
almost_les is offline
post #9 of 9 Old 09-03-2013, 10:42 AM
Junior Member

Join Date: Aug 2013
Location: portage IN
Posts: 18
just wondering if this is for ALL 12's ? im getting ready to install my new clutch in a few minutes and just wanted to check if this is guide can be used on a 2002 zx-12r. Thanks
